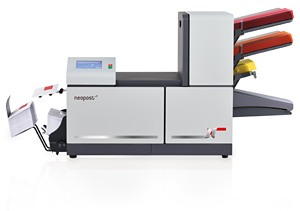

DS-63 Folder Inserter


Customize the DS-63 Folder Inserter for your document handling operation. It is designed with 4 different configurations to meet your business needs.
Which configuration is right for you?
1 Station - One flexFeed® tray that can process documents from 3.5" to 14".
1.5 Stations - One multifunctional flexFeed® tray for full-size documents and one feeder for inserts up to 6".
2 Stations - Two flexFeed® trays can process documents from 3.5" to 14" from both feeders.
2.5 Stations - Two flexFeed® trays that process documents from 3.5" to 14" and a handy feeder for smaller documents (up to 6").
All of the DS-63 configurations are equipped with an automatic job set-up wizard. Just load the documents and envelopes into the DS-63, press the NEW JOB button and the system will program itself to process the job. The result is that your customer receives an automatically collated, professional package with the touch of a button!
- Process documents up to 5 pages thick
- Fifteen programmable jobs to simplify your mailings
- Durable construction for today's office
- 5.7” graphic touch screen for unparalleled user convenience
- Ensure document integrity and prevent double insertions with secure'n Feed®
- flexFeed® trays allow easy insertion of documents and reply envelopes without "fanning"
More Neopost Letter Folding Machines Information
- Jogger Systems
- PF-60 Document Folder
- PF-80 Automatic Document Folder
- PF-90 Fully Automatic Document Folder
- DS-35 Folder Inserter
- DS-63 Folder Inserter
- DS-65 Folder Inserter
- DS-75 Folder Inserter
- DS-85 Folder Inserter
- DS-90i Folder Inserter
- DS-160 Folder Inserter
- DS-160HP Folder Inserter
- DS-200 Folder Inserter
- DS-1200 Folder Inserter
FEATURES | SPECIFICATIONS | ||
Speed | Up to 2,200 documents per hour (depending on application) | ||
Envelope Specifications | Min | Max | |
Width | 6.3" | 9.7" | |
Length | 3.5" | 6.38" | |
Weight | 20# bond | 30# bond | |
Document/Daily Mail Specifications | Min | Max | |
Width | 5.1" | 9.1" | |
Height | 3.5" | 14" | |
Weight | 15# bond | 42# bond | |
Capacity | 325 printed documents of 20# bond | ||
Insert/ BRE Specifications | Min | Max | |
Width | 5.1" | 9.1" | |
Height | 3.5" | 6" | |
Weight | 20# bond | 32# bond | |
Capacity | 50 printed documents of 20# bond or app.45 BRE's | ||
Folding Capacity | 5 pages (20 #) | ||
Physical Dimensions | Footprint 16.5"W x 49"L x 36"H | ||
Weight | approx. 165 lbs | ||
Power Requirements | Voltage 100-120V AC Frequency 60 Hz | ||
Operating Conditions | Temperature 50° - 104° F Humidity 30% - 80% |
